Pre-amp Bundle for B&O Beogram and all Turntables

Pre-amp Bundle for B&O Beogram and all Turntables

£69.99 GBP
£69.99 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
Output

Pre-amp bundle for Bang and Olufsen Beogram Turntables


IMPORTANT NOTE: This item works on all mains supplies from 220 to 240 volts AC, including UK and Europe and the device has a fitted UK mains plug - A European mains plug adapter will be supplied for all deliveries to European addresses, please add a note with the order if you require a different type of mains plug.


Connect your Beogram to any audio input - B&O Aux input, Non B&O Hifi inputs, PC Line input socket and more

This high quality phono pre-amplifier with included converter cables will allow you to connect a B&O Beogram Turntable (or other brand of turntable with fitted DIN cable) into your Bang and Olufsen hifi system using the "Aux In" or "Tape In" socket.

It will also let you connect directly to a non B&O audio system, Hifi, amplifier etc - simply choose the Twin RCA output cable as an option!

This bundle will work with almost all B&O Beogram turntables and record players up to 1990 (where the turntable has the standard 5 or 7 pin DIN plug on a fitted cable). It will also fit most non-B&O turntables that have a captive DIN cable fitted. Please note that a handful of Beogram turntables already have built-in pre-amplifiers and so these should instead be connected to a line level input on your system - if you are in any doubt, please ask!


The bundle includes:

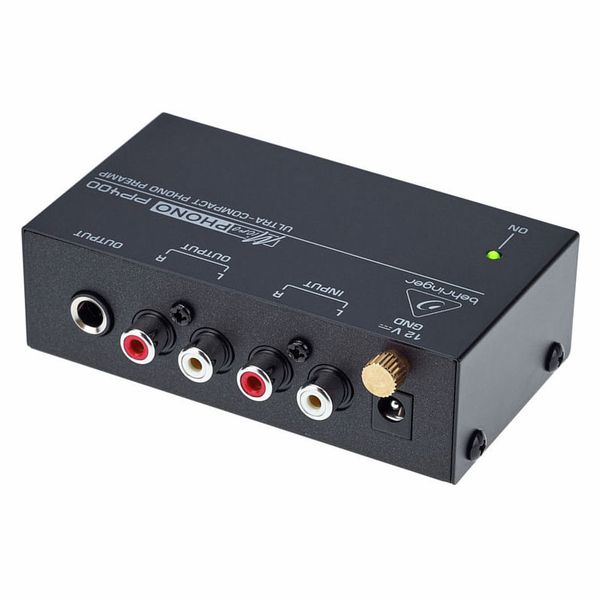

  • High quality RIAA Pre-amplifier (manufactured by Behringer)

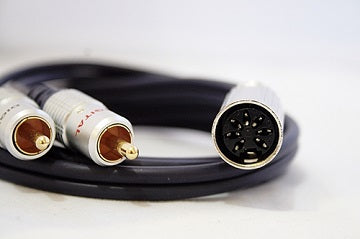

  • Two cables - one for turntable DIN input and one for output
  • Switching power supply enabling worldwide use with UK power plug fitted (220-240v mains AC supply). (For orders delivered to Europe an appropriate mains adapter plug is supplied free with the order)

Pre-amplifier specifications:

  • Input impedance: 47k Ohms
  • Input level: -23.5dBV @ 1kHz
  • Amplification: 35dB (Phono)
  • Signal to noise ratio: 68dB @ 0dBu, A-weighted
  • Output level: +11.5dBV @ 1kHz
  • Power supply input: 220-240V AC


BEOGRAM 6000/6002/8000/8002 - IMPORTANT NOTE: If you wish to connect a Beogram 6000, 6002, 8000 or 8002 to a modern B&O audio system, you will require the original B&O grounded male DIN to DIN input cable that was supplied with the turntable when it was new - this cable is no longer available and it is NOT included with this kit. This is because these Beogram models do not have the fitted output lead that was provided on all other Beogram turntables. Please ensure that you have the original B&O DIN to DIN cable prior to making your purchase if you intend to use this kit with a Beogram 6000, 6002, 8000 or 8002.

Miscellaneous Notes:

  • Connecting to a BeoSound 4 or BeoCenter 2? Select the Twin RCA output cable instead of the default DIN output cable.

  • Connecting to a new B&O wireless speaker with a 3.5mm input? Select the 3.5mm Minijack output cable instead of the default DIN output cable.

  • As with all B&O audio systems, this kit is designed to be left permanently connected to the electrical supply.

  • Power Supply provided can be used for UK/EU.

  • Please note that this kit does not allow the turntable to accept remote control signals from the audio system.

Did you know?
You can also use this kit to digitise your records onto a computer! Choose either the 3.5mm Minijack or Twin RCA output cable as an option and connect to your computer sound card Line Input. If you are in any doubt about suitability, please ask!
